ERSTICKT 20M/66FT Outdoor Armored Fiber Patch Cable, LC to LC OM3/OM4 Multimode Duplex 50/125μm, 10Gb/40Gb/100Gb, Industrial TPU Jacket, Direct Burial, Uniboot, MMF, Fiber Optic Jumper Cord, OD 5mm

The 20m (66ft) LC to LC Outdoor Armored Fiber Optic Patch Cable is built for high-bandwidth transmission in harsh outdoor and industrial environments. With bend-insensitive OM3/OM4 multimode fiber and dual mechanical protection, it ensures durability and reliability in mission-critical deployments such as data centers, telecom rooms, smart buildings, and FTTH networks. Transmission Performance: Featuring bend-insensitive OM3/OM4 multimode 50/125μm fiber: - OM3: 10Gbps up to 300m, 40Gbps up to 100m - OM4: 10Gbps up to 400m, 40Gbps up to 150m, 100Gbps up to 100m Enhanced Engineering Features: - 5mm vs 3mm Durability: The 5.0mm outer diameter provides 66% thicker protection compared to standard 3.0mm cables, enhancing crush resistance and environmental robustness. - Waterproof & Weatherproof: Industrial TPU jacket is fully waterproof and resists UV rays, corrosion, and temperature swings from -40°C to +80°C, ideal for buried or exposed installations. - Crush & Tensile Strength: Stainless steel spiral armor and fiberglass yarns offer resistance up to 3000N (crush) and 600N (tensile), ensuring performance under pressure. - UV & Environmental Longevity: The outer TPU jacket resists aging from sun exposure, salt fog, and thermal cycling—remaining flexible after 20 years in the field. - Polarity Flexibility: LC uniboot duplex connectors allow tool-free polarity reversal, simplifying rack management and future upgrades. Technical Specifications: - Connector Type: LC to LC (Uniboot, UPC polish) - Fiber Type: OM3/OM4 Multimode, 50/125μm, bend-insensitive - Insertion Loss: ≤0.3dB (≤100m) - Return Loss: ≥55dB - Outer Jacket: Black industrial-grade TPU, OD 5.0mm - Armor: Stainless steel spiral tube + reinforced fiberglass yarns - Tensile Strength: 200N (long term) / 600N (short term) - Crush Resistance: 2000N/3000N (long/short term) - Operating Temperature: -40°C ~ +80°C - Lengths Available: 5m (16ft) to 300m (984ft) Application Scenarios: - Data center backbone cabling & high-density patching - SAN/NAS fiber interconnects and storage networks - Telecom room fiber runs, ONU/OLT deployments - FTTH/FTTB access and fiber cabinet extensions - 4K/8K IP camera surveillance backhaul - Smart building and campus fiber links - Tunnel, bridge, and railway signaling systems - Industrial control networks, PLC fiber connectivity - Offshore wind farms, substation monitoring - Harsh outdoor sites: coastal, desert, mountaintop Device Compatibility: Compatible with Cisco, Ubiquiti UniFi, Mikrotik, HPE, Juniper, Netgear, TP-Link, Intel, Fortinet, Arista, Supermicro, Huawei, ZTE, and more. Supports SFP, SFP+, QSFP+, QSFP28, and XFP transceivers; routers, switches, ONU/OLT ports, patch panels, NICs, media converters, and DWDM/CWDM equipment. ERSTICKT armored fiber cables are designed for performance, protection, and durability—perfect for long-term deployments in demanding environments.

• 【Rugged Outdoor-Grade TPU Jacket】This armored outdoor fiber optic cable is wrapped in a thick industrial-grade TPU jacket that offers outstanding tensile strength, UV resistance, and waterproof protection. It is built to handle extreme conditions such as snowfields, deserts, mountain installations, factory pipelines, roadside trenches, and construction zones. Suitable for direct burial, conduit routing, or overhead installation. Available in lengths from 5 to 300 meters to accommodate both small-scale setups and commercial deployments.

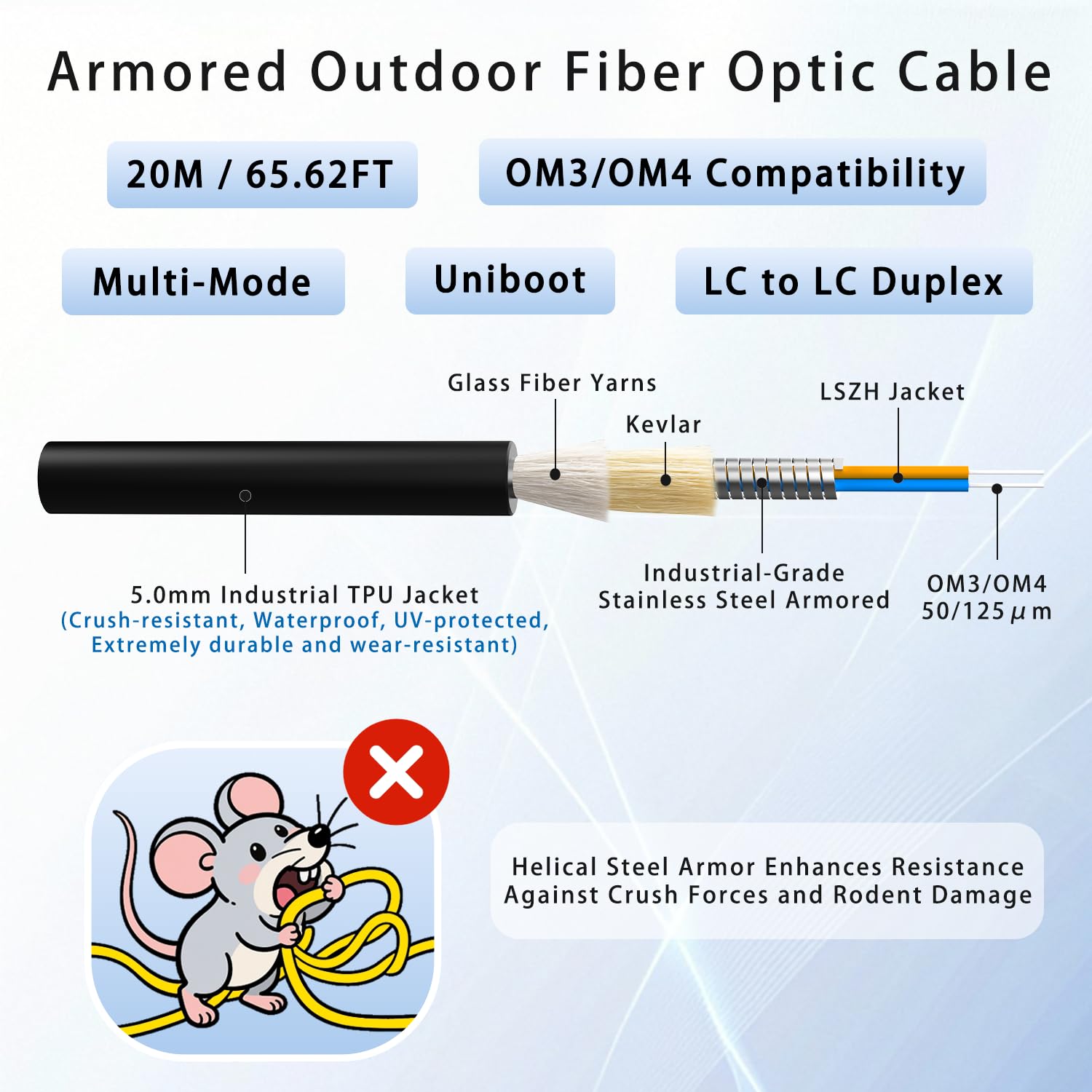

• 【Dual Armored Construction for Protection】Built with a stainless steel spiral armor tube and inner fiberglass yarns, this outdoor fiber cable provides double-layer mechanical protection against crushing, rodent chewing, sharp bending, and pulling stress. With an outer diameter of 5.0mm, it offers significantly more resistance to physical damage than standard 3.0mm fiber cables, making it ideal for direct burial, industrial campuses, outdoor conduits, and environments with heavy foot or vehicle traffic. Engineered for long-term durability in harsh conditions.
• 【OM3/OM4 High-Speed Transmission up to 100Gbps】This armored fiber optic cable uses 50/125μm multimode fiber to support high-speed Ethernet connectivity. At 850nm wavelength, OM3 supports 10Gbps up to 300m, 40Gbps up to 100m, and 100Gbps up to 70m; OM4 extends these distances to 400m, 150m, and 100m respectively. Ideal for data center backbones, enterprise LANs, telecom rooms, FTTH deployments, server farms, campus networks, SAN/NAS storage interconnects, broadcast studios, control systems, surveillance backhauls, and other high-density, high-bandwidth fiber optic infrastructure.
• 【Broad Compatibility Across Networks & Devices】This LC to LC multimode fiber jumper is compatible with a wide range of devices and transceivers, including SFP, SFP+, XFP, QSFP+, QSFP28 modules, 1G/10G/25G/40G/100G Ethernet switches, routers, firewalls, fiber media converters, network interface cards (NICs), ONU/OLT terminals, DWDM/CWDM Mux/Demux, patch panels, NVR systems, industrial control switches, and more. Supports major brands including Cisco, Ubiquiti UniFi, Mikrotik, HPE, Juniper, Arista, D-Link, TP-Link, Netgear, Intel, Fortinet, Zyxel, Brocade, Mellanox, Supermicro, Huawei, ZTE, and others.
• 【LC Uniboot Connector & Space-Saving Design】The LC uniboot duplex connector routes two fibers within a single cable, simplifying installation and reducing clutter. The polarity can be easily reversed in the field without tools. This space-efficient design is ideal for high-density data centers and patch panel management.
