Linear Guide Electric Or Manual Sliding Table SFU1605/1610 BallScrew 50-1200mm Linear Actuator XYZ Axis Nema 23 /60mm Bracket

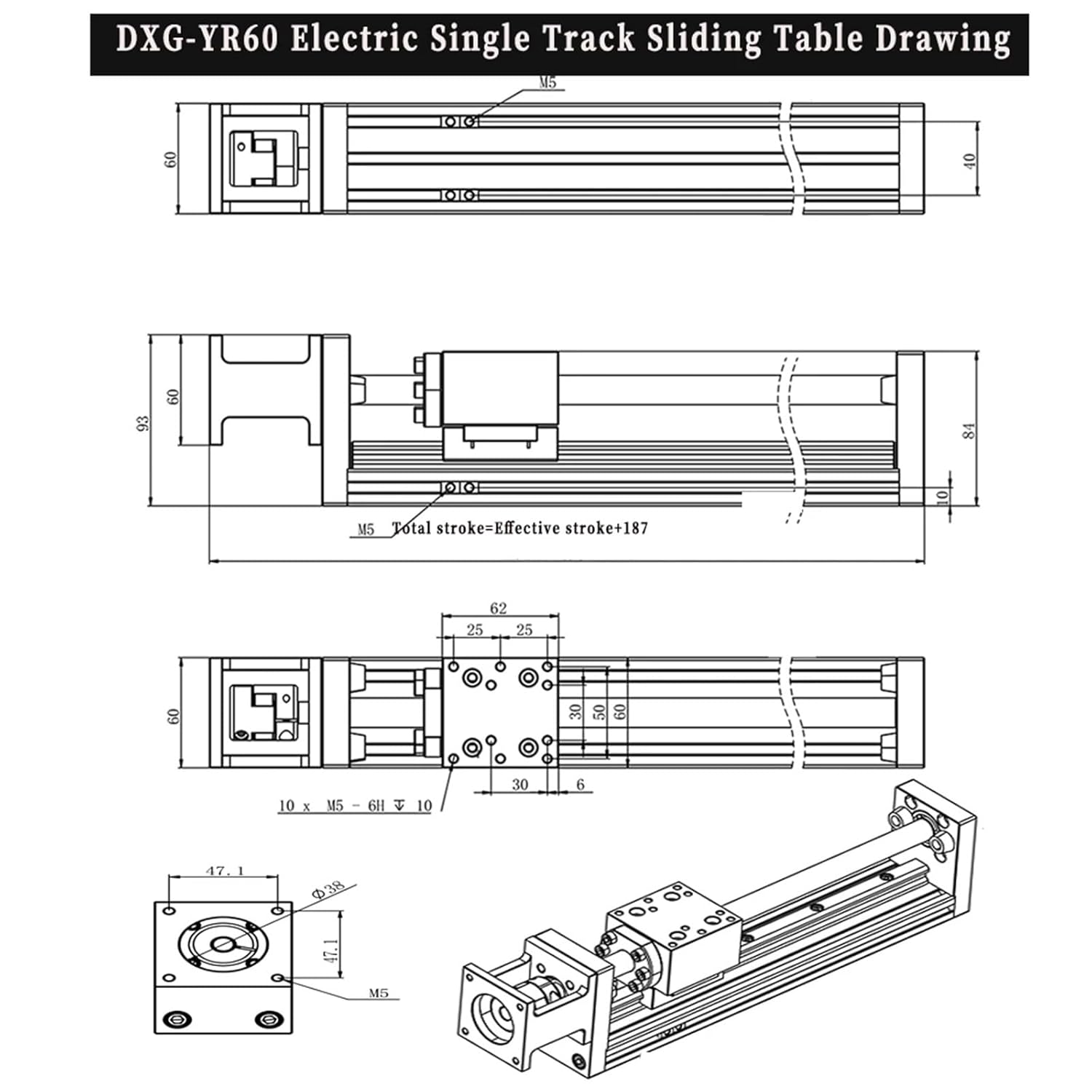

If you choose "For Nema23 Bracket ":1* SFU1605/1610Sliding Table1* 8mm to 8mm Coupling for Nema 23 MotorIf you choose "For 60 Servo Bracket" :1* SFU1605/1610Sliding Table1* 8mm to 8mm Coupling for 60 Servo MotorIf you choose Manual Slide table:1* SFU1605/1610 Manual Slide TableNote:1.3D drawings can be obtained by contacting customer service2.To build XZ, XY, XYZ axis, it is necessary to customize the connecting plate, please contact customer service for quotation. Note: If you need a slide table with a stepper motor and driver, you can purchase them through this link:NENA 23 27mm Stepper Motor and DriverModel:DXG-YR60Ballscrew type:SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)/ SFU1610Ballscrew accuracy:C7 levelEffective stroke: 50mm-1200mm OptionalTotal length: Effective stroke+187mmMobile panel size: 60*62mmSlide width: 60mmGuide diameter: 15mmGuide Type:HGR15RSlider Type:HGW15CCHorizontal load: Max 60KG Vertical load: Max 30KGBallscrew Repeat positioning accuracy: 0.02-0.03mmSupported motor bracket : Nema 23 stepper motor;60 Sevor MotorBallscrew and linear rail material: Carbon steel and bearing steelBase plate material: Aluminium alloyModel Number : DXG-YR60Guide Width or Diameter : 15mmOrigin : Mainland ChinaCertification : CEBallscrew type : SFU1605/SFU1610Ballscrew accuracy : C7 levelEffective stroke : 50mm-1200mm OptionalSlider Type : HGW15CCMaximum speed : 500mm/sRepeat positioning accuracy : 0.02mm-0.03Slide Material : Aviation aluminumGuide Type : HGR15RWidth : 60MMHorizontal load : 60KG (MAX)Vertical load : 30KG (MAX)Type 1 : cnc tableType 2 : linear stageType 3 : xy tableType 4 : SFU1605Type 5 : cnc axisType 6 : sliding tableType 7 : linear guideType 8 : linear moduleType 9 : linear guide railType 10 : xyz gantryType 11 : linear axisType 12 : cnc sliding tableType 13 : xyz stageType 14 : linear railType 15 : slide tableType 16 : Nema 23 linear railType 17 : Nema 23 slide tableType 18 : 60 Servo Bracket

• Extensive Stroke Options:Available in 50-1200mm effective strokes to meet diverse motion requirements.
• Versatile Motor Compatibility:Supports both Nema 23 and 60 servo motors, offering flexibility in motor selection.
• Durable Material Construction:Constructed with aviation aluminum and carbon steel for high load capacity and longevity.
• Customizable Design:Offers customizable connecting plates for building XZ, XY, XYZ axis systems.

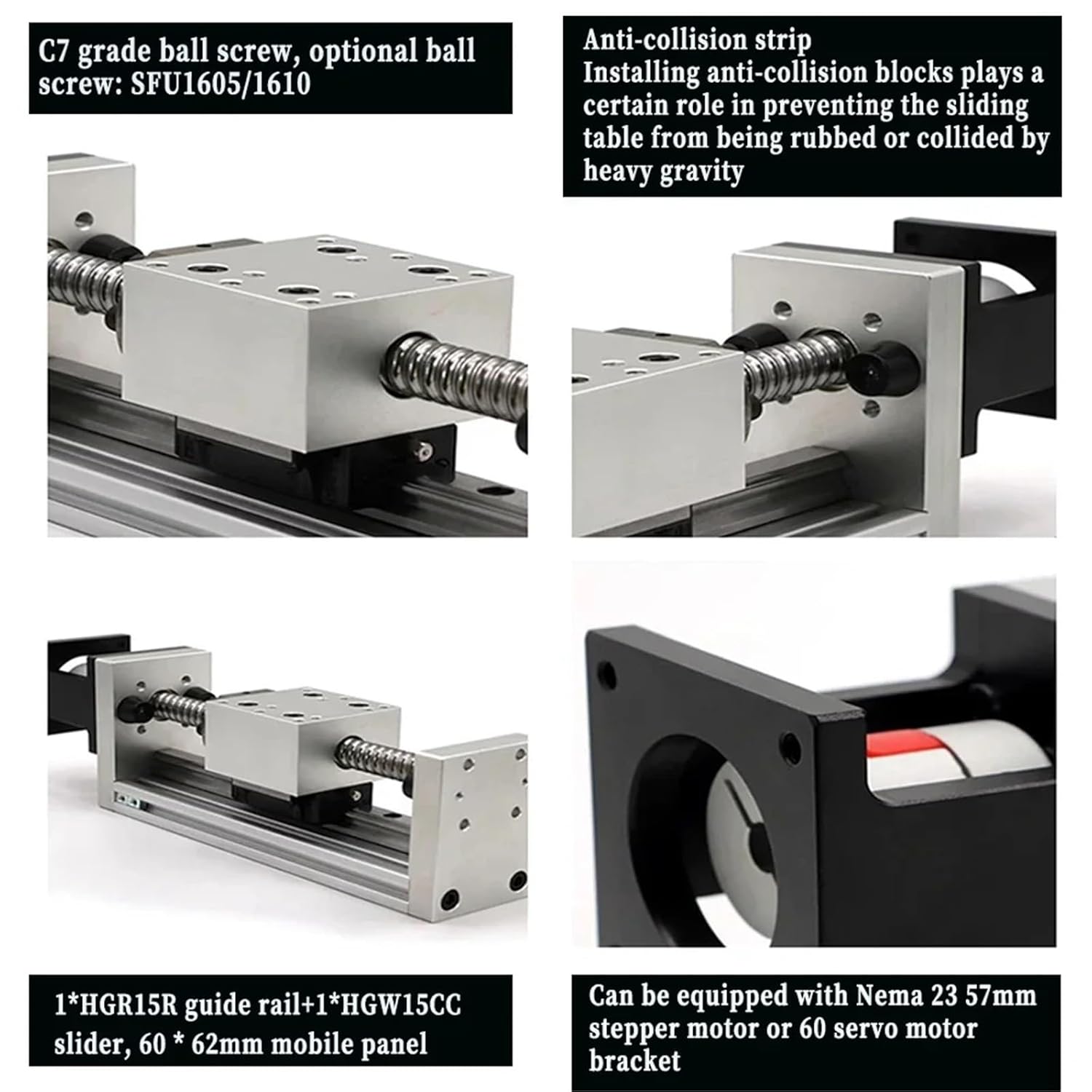

• Sliding Table|Sliding Table Linear Actuator|High Precision Ballscrew:Features SFU1605/1610 ball screws with C7 level accuracy for precise positioning.
