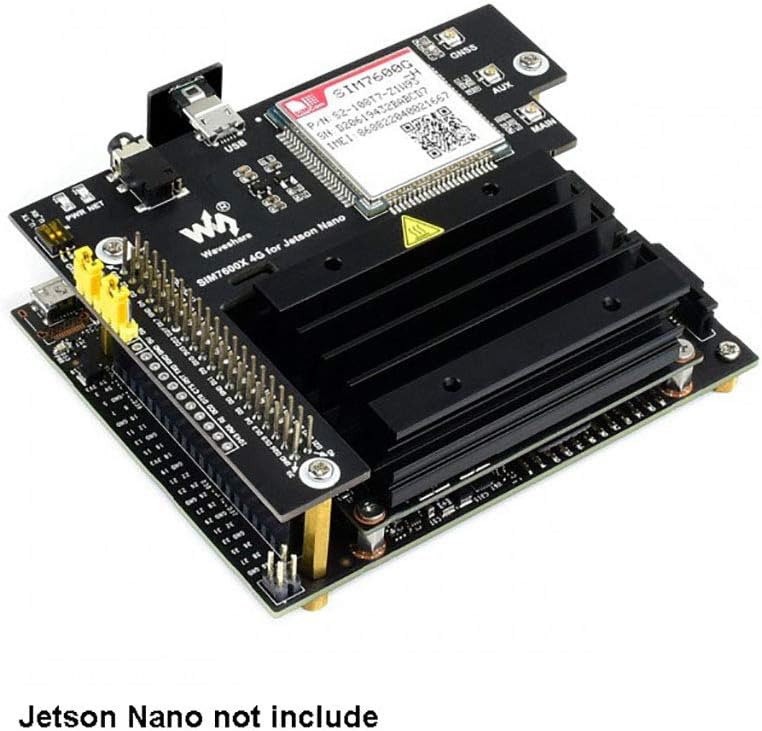

SIM7600G-H 4G/3G/2G/GNSS Expansion Board for Jetson Nano Supports LTE CAT4 up to 150Mbps Global Applicable for GPS, BeiDou, Glonass, LBS Base Station Positioning

Overview This is a 4G/3G/2G communication and GNSS positioning module designed for Jetson Nano, it supports global LTE CAT4 up to 150Mbps for downlink data transfer, with pretty low power consumption. Just attach it onto the Jetson Nano Developer Kit, easily enable functions like 4G high speed connection, wireless communication, remote video monitoring, making telephone call, sending SMS, global positioning, and so on. Features 40PIN GPIO extension header for connecting Jetson Nano Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, LBS base station positioning Onboard USB interface, to test AT Commands, get GPS positioning data, and so on Breakout UART control pins, to connect with host boards like Arduino/STM32 SIM card slot, supports 1.8V/3V SIM card Onboard 3.5mm audio jack with earphone and mic support, for making telephone call 2x LED indicators, easy to monitor the working status Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper Baudrate: 300bps ~ 4Mbps (default: 115200bps) Autobauding baudrate: 9600bps ~ 115200bps Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set) Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT Comes with development resources and manual (examples for Jetson Nano/Raspberry Pi/Arduino/STM32) PACKAGE CONTENT Note: Jetson Nano is NOT included. 1. SIM7600G-H 4G for Jetson Nano x1 2. LTE Antenna x1 3. GPS External Antenna (B) x1 4. Jetson Nano USB Adapter x1 5. Screws pack (2pcs) x1

• 40PIN GPIO extension header for connecting Jetson Nano; Onboard USB interface, to test AT Commands, get GPS positioning data, and so on;SIM card slot, supports 1.8V/3V SIM card;2x LED indicators, easy to monitor the working status
• Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.; Supports GPS, BeiDou, Glonass, LBS base station positioning; Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
• Breakout UART control pins, to connect with host boards like Arduino/STM32; Onboard 3.5mm audio jack with earphone and mic support, for making telephone call
• Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper; Baudrate: 300bps ~ 4Mbps (default: 115200bps); Autobauding baudrate: 9600bps ~ 115200bps
• Comes with development resources and manual (examples for Jetson Nano/Raspberry Pi/Arduino/STM32) : www.waveshare.com/wiki/SIM7600G-H_4G_for_Jetson_Nano
