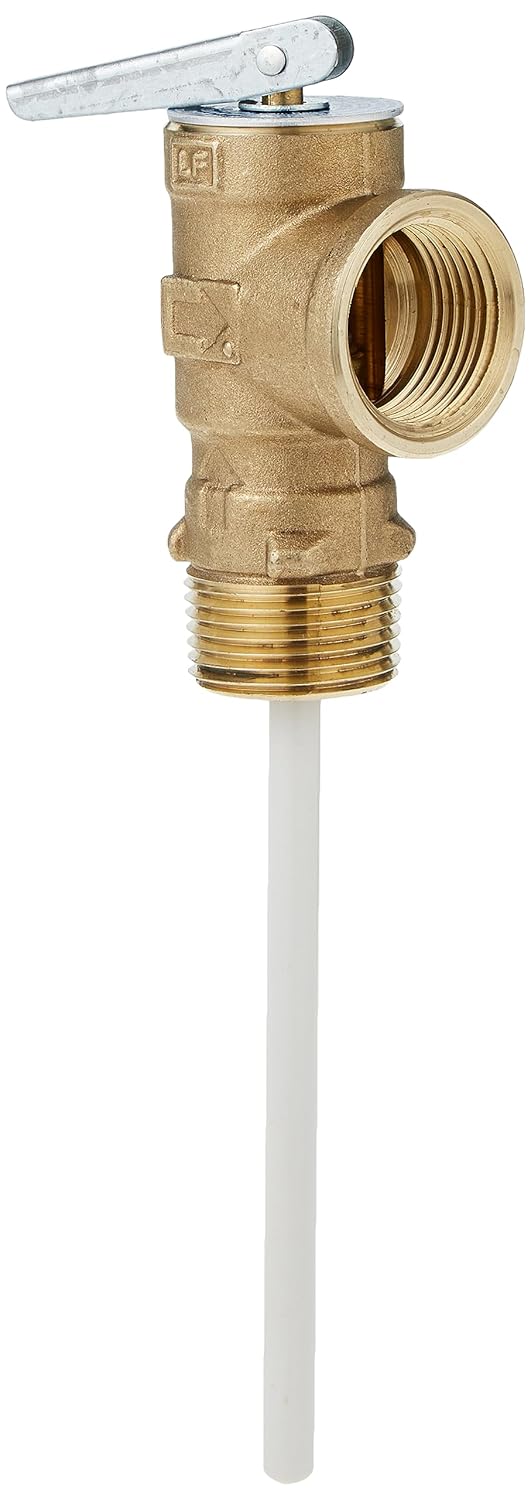

Watts 3/4" Lead-Free Copper Alloy Bronze Fully Automatic Self-Closing Temperature and Pressure Relief Valve, NPT Male Inlet x NPT Female Outlet Connections, Test Lever, Extension Thermostat

Product Description The Watts 3/4" Lead-Free Bronze Pressure Relief Valve is engineered to offer fully automatic, self-closing temperature and pressure relief protection for hot water storage tanks and water heaters with capacities up to 105,000 BTU/hr. This versatile 2-in-1 valve is an essential safety component, combining both temperature and pressure relief functions in a single unit.Constructed with a durable lead-free copper alloy body, the valve ensures long-lasting performance and reliability. Its wetted surface that comes into contact with consumable water contains less than 0.25% lead by weight, ensuring safety and compliance with lead-free regulations. This makes it suitable for use in potable water systems, safeguarding both the system and users from lead.This valve also features NPT male inlet and NPT female outlet connections, making installation straightforward, and its test lever allows for easy testing and maintenance. Furthermore, this valve features an advanced, unique thermostat design. The thermostat is equipped with a special thermo-bonded coating, which enhances its accuracy and responsiveness. For optimal performance, the thermostat must be immersed in water within the top 6 inches (152 mm) of the tank. This ensures precise temperature control, preventing overheating and potential damage to the water heater or storage tank.Designed to meet rigorous safety standards, the Watts Pressure Relief Valve is both ASME rated and CSA listed. It is engineered to handle a temperature relief setting of 210° F (99° C) and a pressure relief range of 75 to 150 psi (5.2 to 10.3 bar), providing comprehensive protection against the dangers of overpressure and excessive temperatures. From the Manufacturer This Watts 3/4-Inch Lead Free Brass FPT Temperature and Safety Pressure Relief Valve is a self-closing temperature and pressure safety relief valve used for hot water heaters. It provides temperature relief at 210-Degree F and pressure relief at 150 psi.

• PRESSURE RELIEF VALVE: The Watts 3/4" Lead-Free Bronze Pressure Relief Valve provides fully automatic self-closing temperature and pressure relief protection for hot water storage tanks and water heaters up to 105,000 BTU/HR.
• COMPREHENSIVE FEATURES: This 2-in-1 temperature and pressure relief valve features a lead-free copper alloy body construction, NPT male inlet x NPT female outlet connections, test lever, and extension thermostat for installation in the hot water outlet line or directly in the tank tapping.
• ADVANCED THERMOSTAT: Equipped with a unique thermostat featuring a special thermo-bonded coating, these valves provide accurate readings. The thermostat must be immersed in the water within the top 6" (152 mm) of the tank to provide precise temperature control.
• HIGH PROTECTION LEVEL: ASME rated and CSA listed, these valves are designed with a temperature relief setting of 210° F (99° C) and a pressure relief range of 75 to 150 psi (5.2 to 10.3 bar).
• EVERY DROP COUNTS: Water. It's in our name and close to our hearts. Since 1874, Watts Water Technologies has been delivering innovative technologies that make the world's most precious resource safe and accessible. Everything we design is made to keep the Earth's most precious resource safer, cleaner, and more useful for our customers. Our family of brands offers one of the most varied product lines in the world, with world-class, water-related solutions.
