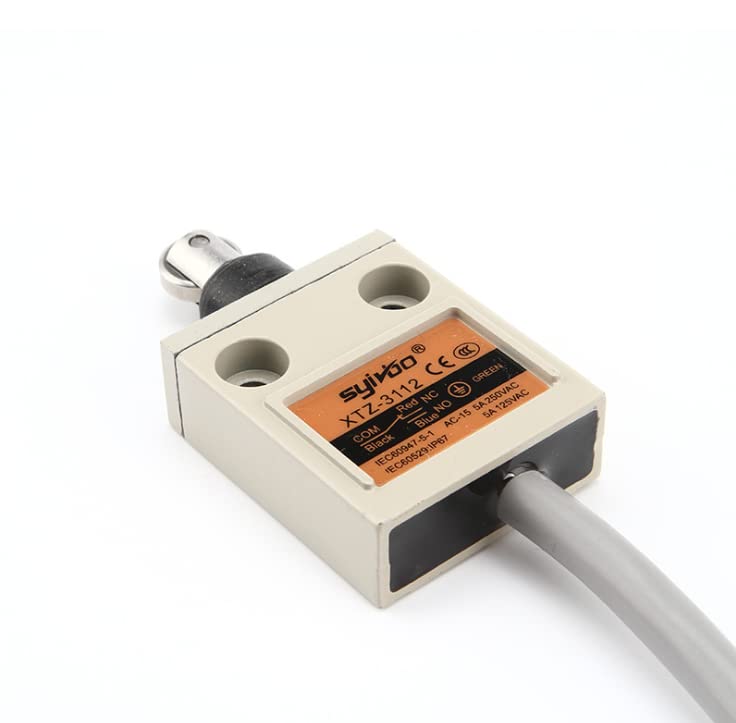

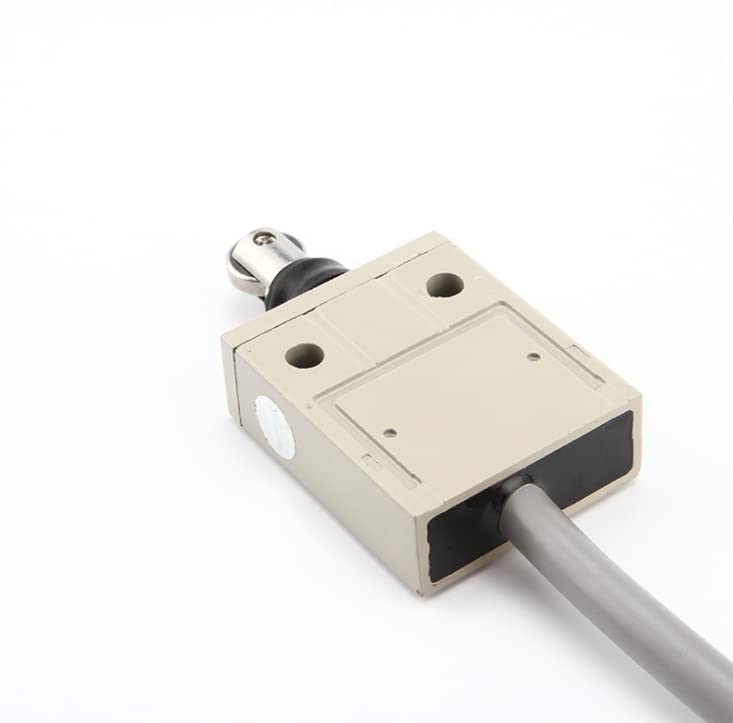

TZ-3112 XTZ-3112 IP67 4Wire Roller Lever Plunger Limit Switch SPDT NO+NC Copper Wire 3 Meter
Product details
| Management number | 236844222 | Release Date | 2026/07/10 | List Price | US$33.16 | Model Number | 236844222 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Wire Length: 3MBody Size: 48.5 x 40 x 16mm (L*W*T)Mounting Hole Size: 5.2mm (D)Mounting Hole Distance: 25mmThe roller plunger can be operated in a wide range by employing a cam, Dog, cylinder, or auxiliary actuator.Position detection accuracy is high.Operating Characteristics:OF max.: 1800gf (17.76N)RF min.: 450gf (4.41N)PT max.: 1.8mmOT min.: 3mmMD max.: 0.2mmOP: 34.3+/-1mmDouble circuit limit switch with build-in double reed mechanism.Aluminium alloy shell, strong and hightly rigid construction.Smooth operation with highter OT.Prewired design.This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
- Product Name: Limit Switch
- Model: TZ-3112
- Actuator Type: Roller Plunger Type
- Rated Voltage:
- AC-15: 5A 250V
- DC-12: 2A 30V
- Contact Configuration: COM-Black, NC-Red, NO-White, E-Green/Yellow
| ASIN | B0G3PQDDP6 |
|---|---|
| Color | One Color |
| Terminal | Blade |
| Brand Name | KGFCE |
| Unit Count | 1.0 Count |
| Part Number | HCEDSYFAC |
| Switch Type | Bipolar Transistor |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Manufacturer | KGFCE |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | DIN Rail Mount |
| Connector Type | Clamp |
| Current Rating | 1 Amps |
| Operation Mode | OFF-NONE-ON |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
| Number of Items | 1 |
| Contact Material | Alloy Steel |
| Operating Voltage | 1 Kilovolts |
| Specification Met | UL |
| Number of Positions | 1 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Upper Temperature Rating | 1 Degrees Celsius |
| International Protection Rating | IP00 |
